Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE – Zhongke Detail:

Information

Dimension and weight: 162mm*77mm*112mm, 1.2kg

External Diameter of Inlet/Outlet: 20mm(thread)

Head:0-32m

Flow rate: 0-2000L/H

Driving Mechanism: Brushless, magnetic separation

Life span: 30000hrs

Noise: ≤35dB(A)

Waterproof level: IP68

Max. working temperature: -30℃-100℃

Suitable medium: water, oil, normal acid/alkaline(tested needed for special liquid)

Speed adjustable(Optional): PWM/0-5V analog signal/potentiometer

Constant power output: For example, a 12V(24V) 10W pump uses 12-18V(24-30V), the power is still 10W, and it can run continously.

Application

DC55JE1

All kinds of system needs much higher pressure

1

Product model:

DC55JE-12240PWM

DC55JE-12240VR

DC55JE-12240S

DC55JE-18320PWM

DC55JE-18320VR

DC55JE-18320S

DC55JE-24320PWM

DC55JE-24320VR

DC55JE-24320S

DC55JE-36320PWM

DC55JE-36320VR

DC55JE-36320S

PWM:PWM speed regulation

VR:potentiometer speed regulation

S:Fixed speed

2

Rated Voltage:

12V DC

18V DC

24V DC

36V DC



3

Working voltage range:

5-12V

10-24V

14-30V

10-40V

The pump can out put constant power when the voltage is higher than rated voltage.



4

Rated Current:

8.3A(9.2A)

8A(8.8A)

6.3A(6.7A)

4A(4.5A)

Closed outlet current(open outlet current)



5

Input Power:

100W(110W)

150W(160W)

150W(160W)

150W(160W)

Closed outlet power(open outlet power)

6

Max. Flow rate:

1800L/H

2000L/H

2000L/H

2000L/H

Open outlet flow

7

Max. Head:

24M

32M

32M

32M

Static lift

8

Min. power supply:

12V-10A

18V Solar panel power

24V-7A

36V-3A

1

Jam protection When jam it will Stop to protect itself

2

Dry run protection The pump will Stop(8S) and start(2s) repeatedly to protect itself(can be customized)

3

Overloading protection When the voltage exceeds the rated power, the pump will stop

4

Reverse protection Wrong connection of the power supply(positive and negative), the water pump will stop running, and then re-connected, can work normally.



Controller Internal install

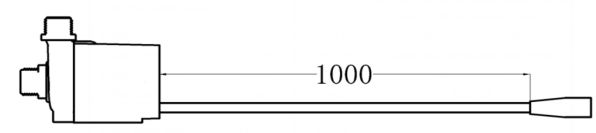

 DC50D2 Suitable for external installation



Controller External install

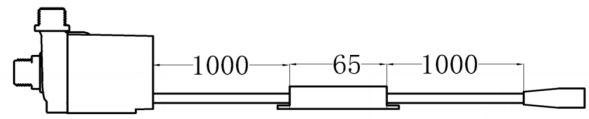

 DC50C3 Suitable for high temperature or Corrosive liquid submersible installation

Flow Rate Curve

DC55JE2

Dimension

DC55JE3
sadadzxcxz

How to choose a right pump for your system?

1. Confirm your operating voltage, current, head, flow, and the size of inlet & outlet. In general, there is no flow when the head achieve the maximum head marked by factory. So if you require the pump is able to meet a certain height and also meet a certain flow, you should choose a higher maximum head than you need. Please consult us or refer to the performance curves.

2. Confirm the shape requirements, such as the type of interface, the direction of inlet & outlet, etc.

3. Confirm the working environment, such as the temperature, the medium, etc.

4. Confirm the functional requirements, such as the time control, the flow control, the speed control, etc.

5. Please feel free to contact us if you have any questions need our help during choose the pump.

6. We own our moulding factory, have the ability and capacity to open the mould, so if your system needs special model, we can provide ODM/OEM service for you.

And highly welcome OEM/ODM!

Installation

asvqwvs

Note: The pump is not self-priming pump. When install it, please make sure there is enough water in pump body. Meanwhile, the pump must be installed below the liquid level in the tank.

FAQ

How long is the delivery time?

Sample order is 3~5 days.

Bulk order is 10~15 days.

If there is pumps in stock, it is 2 days.

How long is the warranty of pump?

Warranty is 1 year.

What’s the payment method?

Paypal or T/T,Alipay

What certificates have your pumps passed?

All our products have passed CE, RoHS

High welcome OEM and ODM!


Product detail pictures:

Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE  – Zhongke detail pictures

Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE  – Zhongke detail pictures

Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE  – Zhongke detail pictures

Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE  – Zhongke detail pictures

Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE  – Zhongke detail pictures

Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE  – Zhongke detail pictures


Related Product Guide:

That has a sound small business credit, great after-sales service and modern production facilities, we've earned an outstanding standing amid our buyers across the earth for Reasonable price for Small Size Submersible Pump - Booster Water Pump 12V/24V High Power Use In Multiple Scenarios DC55JE – Zhongke , The product will supply to all over the world, such as: South Korea, Adelaide, Sao Paulo, Our company is working by the operation principle of "integrity-based, cooperation created, people oriented, win-win cooperation". We hope we can have a friendly relationship with businessman from all over the world.

1.DC Low voltage safe and reliable
2.Three phase brushless sine wave control technology
3.Eliminate high-frequency electromagnetic noise, smooth and silent
4.The pump body and the drive can be separated and resistant to high temperature
5.Magnetic isolation design, leakage proof, waterproof grade IP68.
6.Acid, alkali and salt corrosion resistance, oil resistance, organic solvents and other liquid media (consult in advance)
7.Constant power can be customized (for example, 12V 80W water pump, Constant Power 80W with voltage varying between 12v-24v)
8.Constant speed can be customized (keep the speed unchanged when the load changes)
9.Accurate dry run protection and Jam protection based on current detection (programmable protection mechanism)
10.Soft start eliminates the peak voltage and reduces the starting current
11.Suitable for Music fountain and other high-frequency start- stop application
12.MPPT function can be customized for solar power supply to avoid poor startup when the light is weak.
13.The pump and pump control system can be customized for various application environment requirements
